Forward Torpedo Room
 (Scroll down for Sonar Shack)


Accomplishments:

  • Acquired and loaded three MK 14 torpedoes

  • Acquired and loaded one MK 37 torpedo

  • Acquired and loaded torpedo skids from USS Trout

  • Officer's Head being restored

  • Acquired and installed bunks

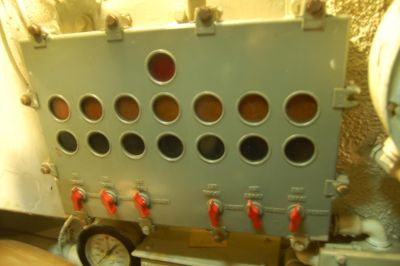

  • Restored and energized Torpedo Firing Status Panels

  • Restored Escape Trunk

  • Acquired and restored MK 25 NAVOL Monitor

  • Purchased and installed new Lexan barrier in front of tubes

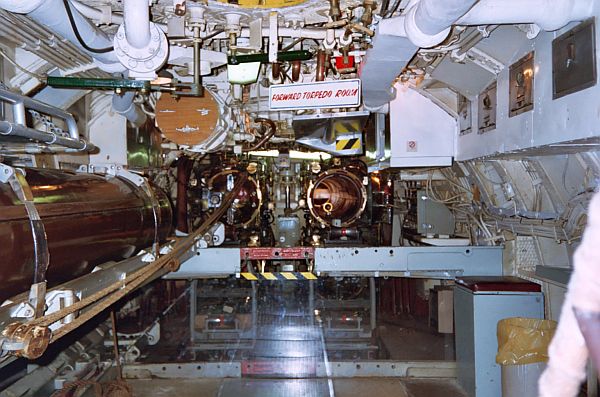

Forward Torpedo Room in 1998

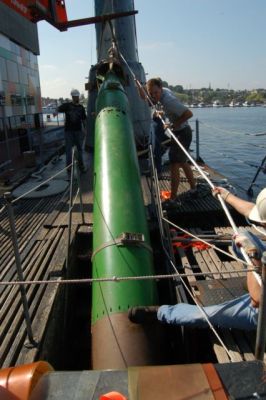

MK 37 Torpedo Load

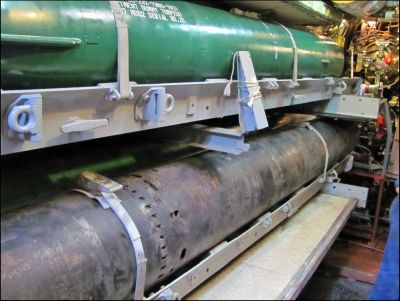

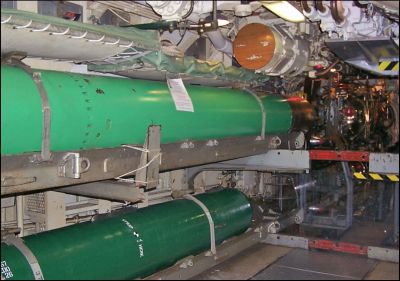

MK 14 and MK 37 Torpedoes on Skids

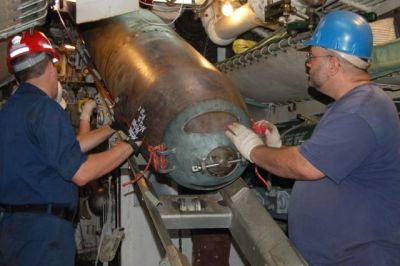

MK 14 Torpedo Load

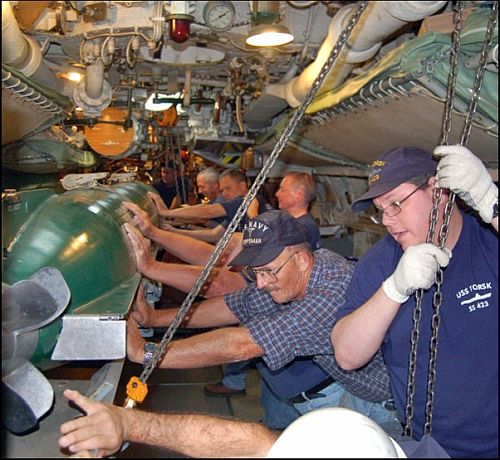

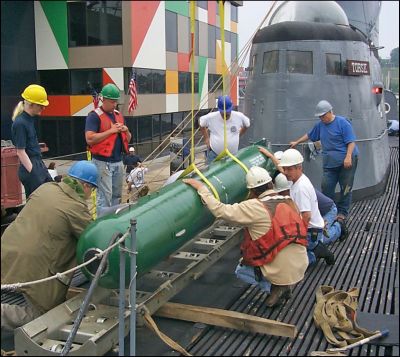

Moving the MK 37 into place




MK 37 and MK 14 on display - 2010

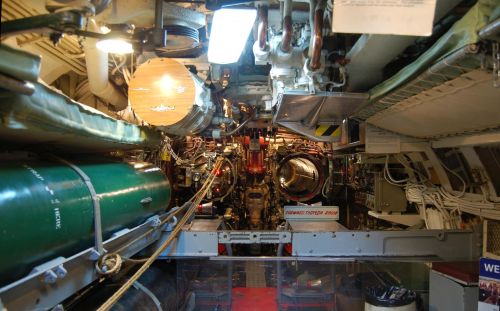

Forward Torpedo Room - 2012

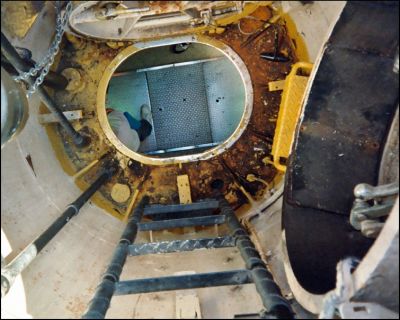

Forward Escape Trunk Before Restoration

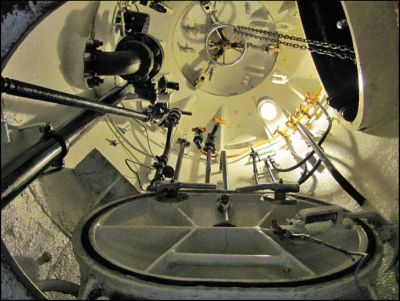

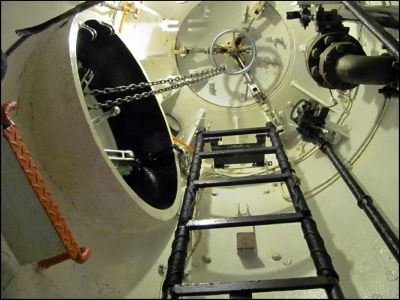

Forward Escape Trunk After Restoration

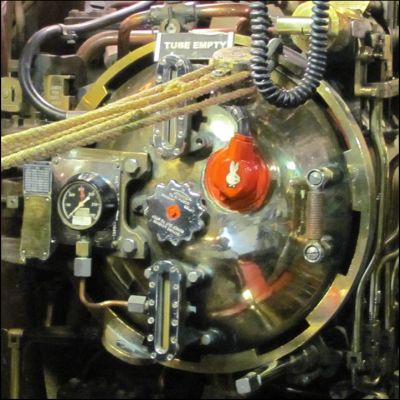

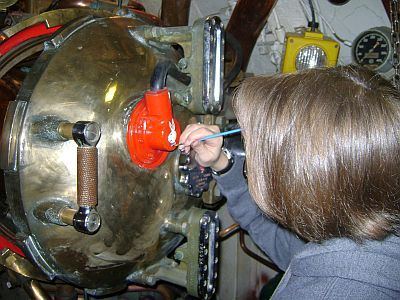

Detail Work

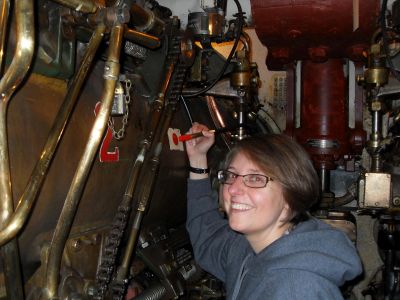

Detail Work

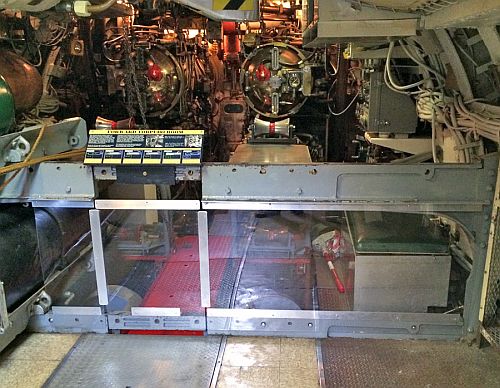

New Lexan Barrier with Gate - 2016




Sonar Shack



Accomplishments:

  • Restored Sonar Shack from it's prior use as paint locker to correct appearance

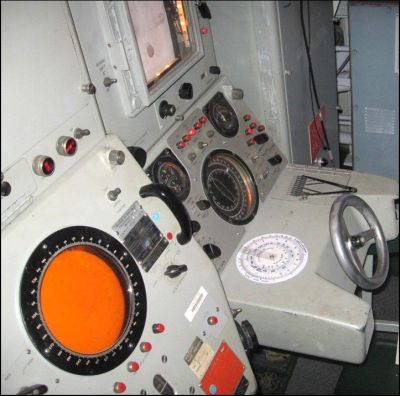

  • Acquired and installed BQR-7 Sonar Console

  • Replaced BQR-7 with Torsk-correct BQR-2 obtained from USS Trout

  • Acquired and installed BQS-4 Suite

  • Acquired and installed Dual UNQ-7 Reel Tape Recorder

  • Installed deep water depth guage donated by USSVI Groton Base

  • Installed period correct artifacts and "special effects lighting" in Sonar


Painting the shack




Moving in new Equipment - 1999




2010

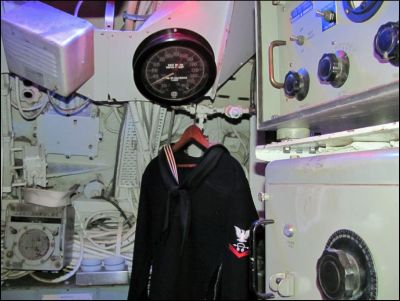

Equipment and uniform

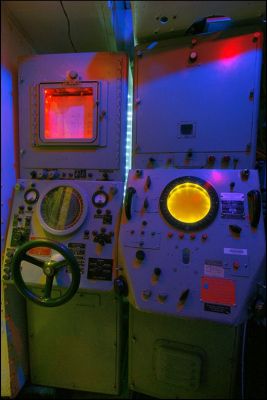

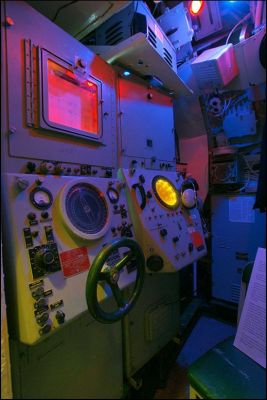

Sonar Shack in 2012
