Control Room

Accomplishments:

  • Restored air manifolds and two air banks and made Ship's Service Air operational from compressor in LLAB

  • Restored and energized IC Switchboard

  • Restored and energized:

    • Motor Order Telegraphs

    • Snorkel Control Panel

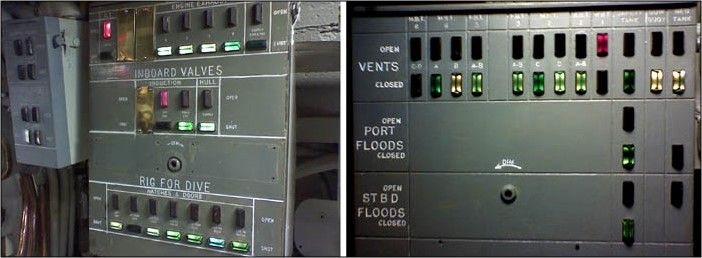

    • Hull and Ballast Indication Panels

    • Snorkel Indication Panels

    • Emergency Planes & Rudder Indicators

    • Mast & Bilge Alarms

    • 1MC

  • Restored Diving Stand

  • Restored Emergency Helm Station

  • Accquired and installed MK 19 Master Gyrocompass

  • Acquired and installed Radio, ECM & LORAN gear

  • Acquired and installed video camera and flad screen monitor for periscope and Conning Tower live displays

  • Acquired and installed hydrophone for "SONAR" sounds of Baltimore Harbor

  • Continuosly chipping, painting, and polishing to preserve and maintain appearance

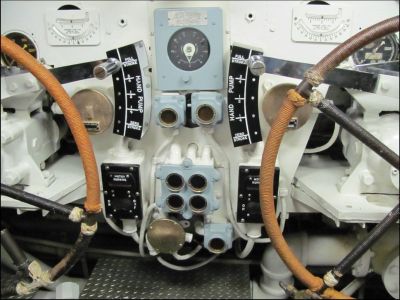

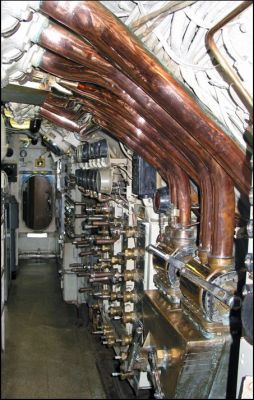

Air Manifolds and Trim & Drain Manifold

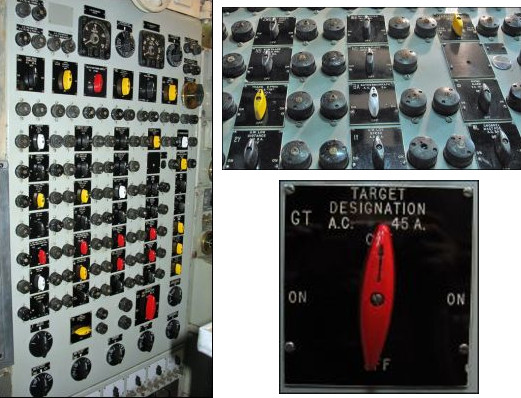

IC Switchboard & Details

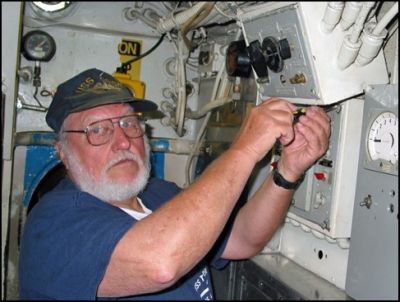

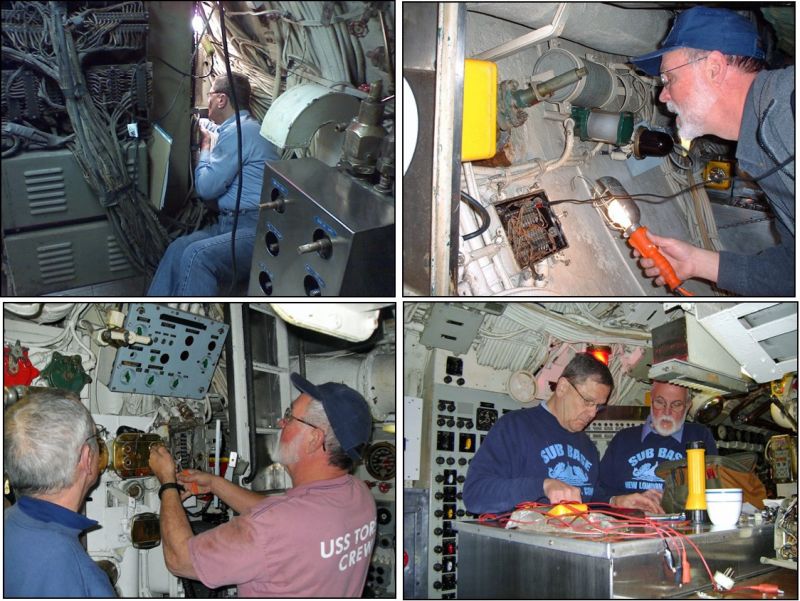

Restoration & Repairs

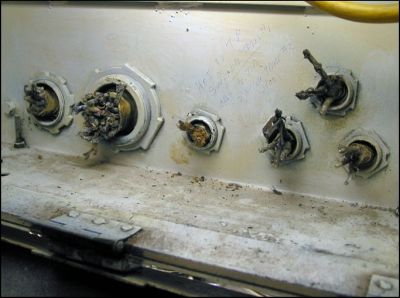

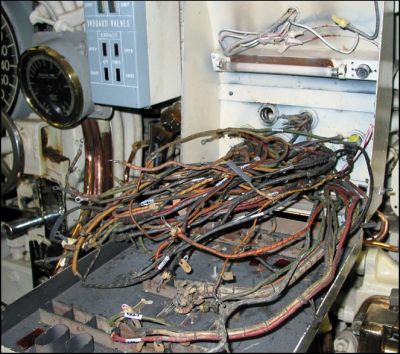

 Christmas Tree before restoration with cut wires to left.

Splicing wires back in progress to right.

Christmas Tree after restoration - fully functional!

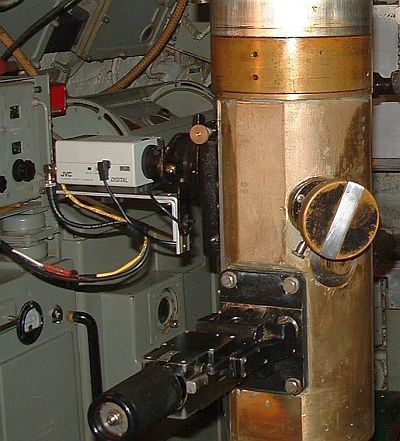

Periscope Video Camera and Monitor View

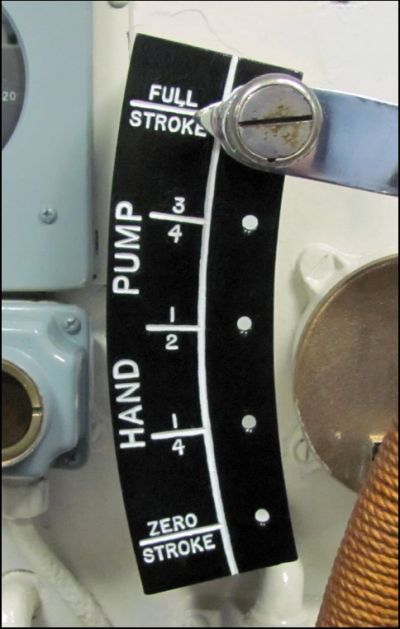

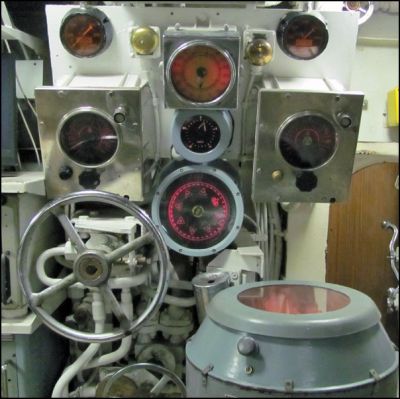

Diving Stand and Detail







Emergency Helm Area

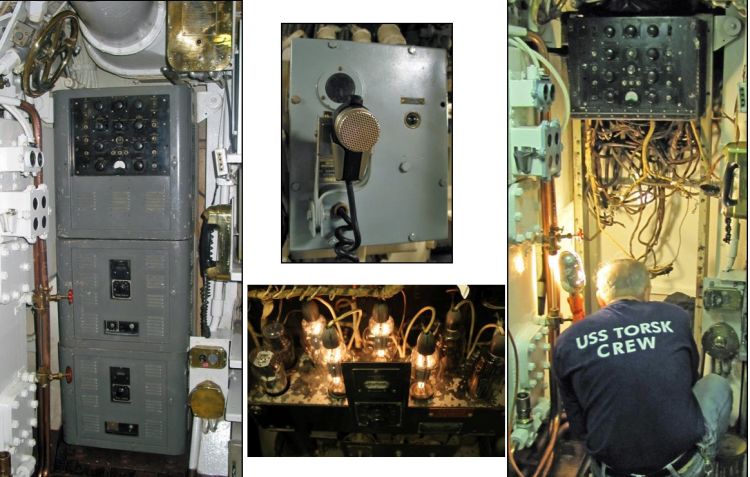

1MC Restoration Work

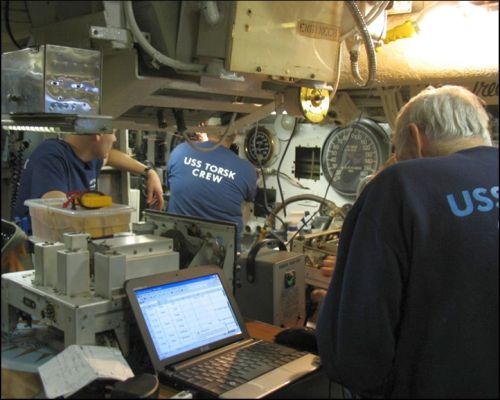

High-Tech meets Low-Tech

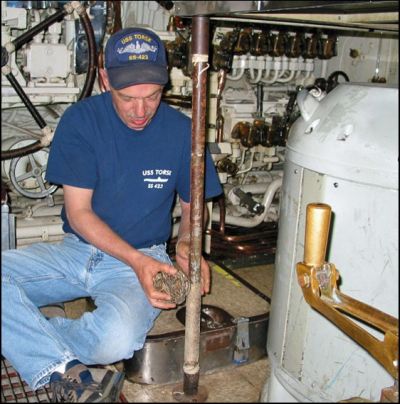

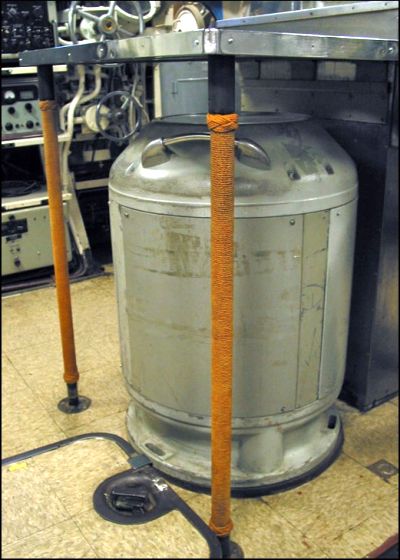

Replacing the rope work on the navigation table legs.

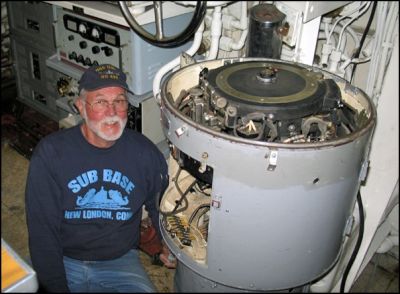

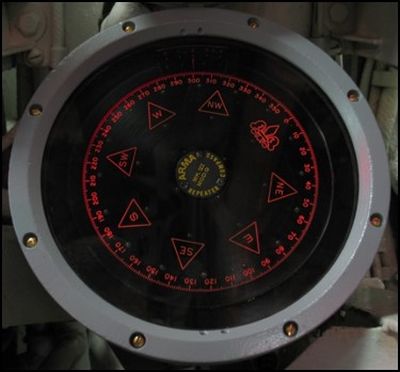

Note the MK 19 Master Gyrocompass.

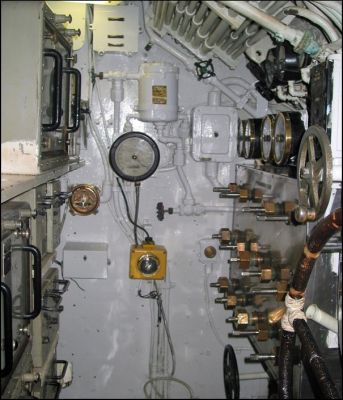

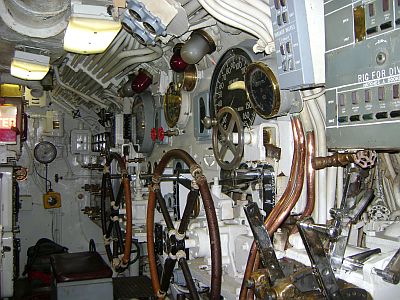

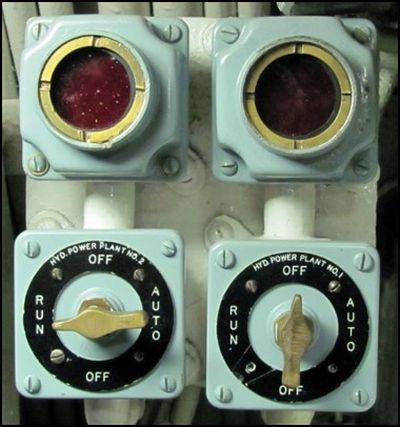

Control Room details







Control Room details

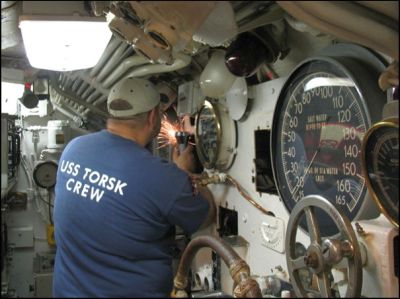

Fine detail restoration requires a high level of patience!







Maintenance and Restoration is an ongoing process
